LX200GPS Drive Assembly
Photos

MAPUG-Astronomy Topical Archive     AstroDesigns    MAPUG-Astronomy.net
Autostar Hand Controller

clear

rule

From: John Ruthroff <johna_tjohnruthroff.com> Date: Dec 2002     Top

Here are some photos I've taken of my 12" GPS.

Note: Click the images for larger views which will open in a new browser window-- close it to return here:

Dec Gear Train

Dec Gear Train

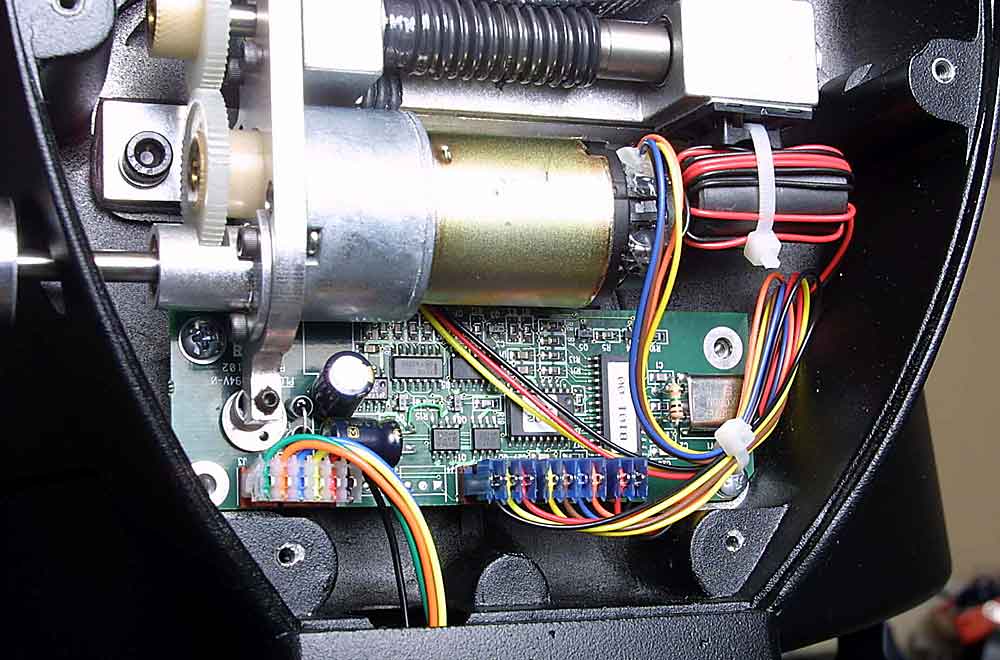

 Dec Motor Assembly

Dec Motor Assembly
RA Motor Assembly

RA Motor Assembly

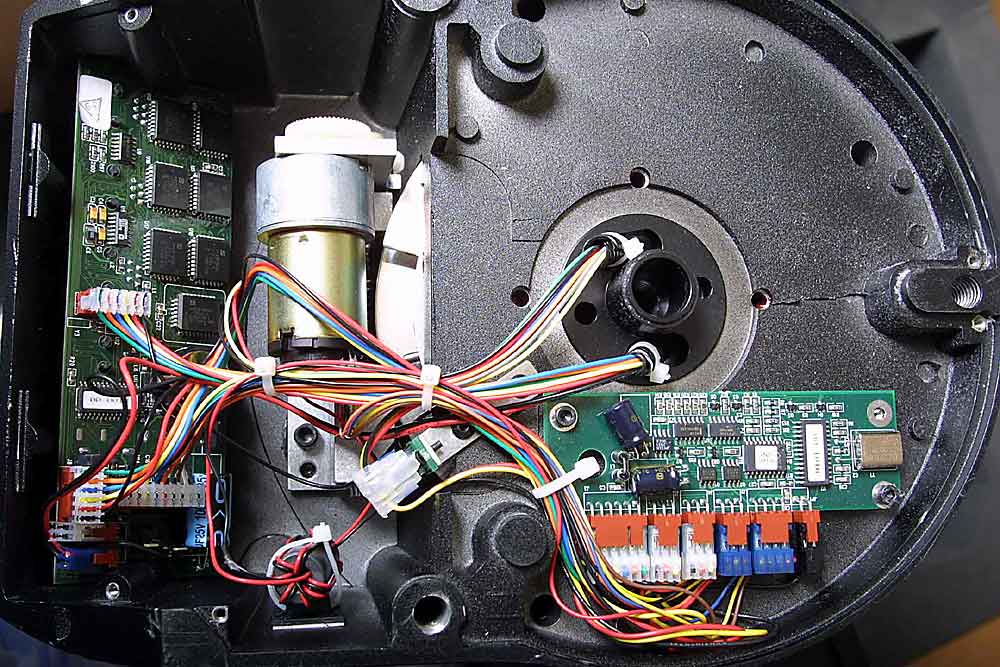

 Overview of Base

Overview of Base
Power Panel View

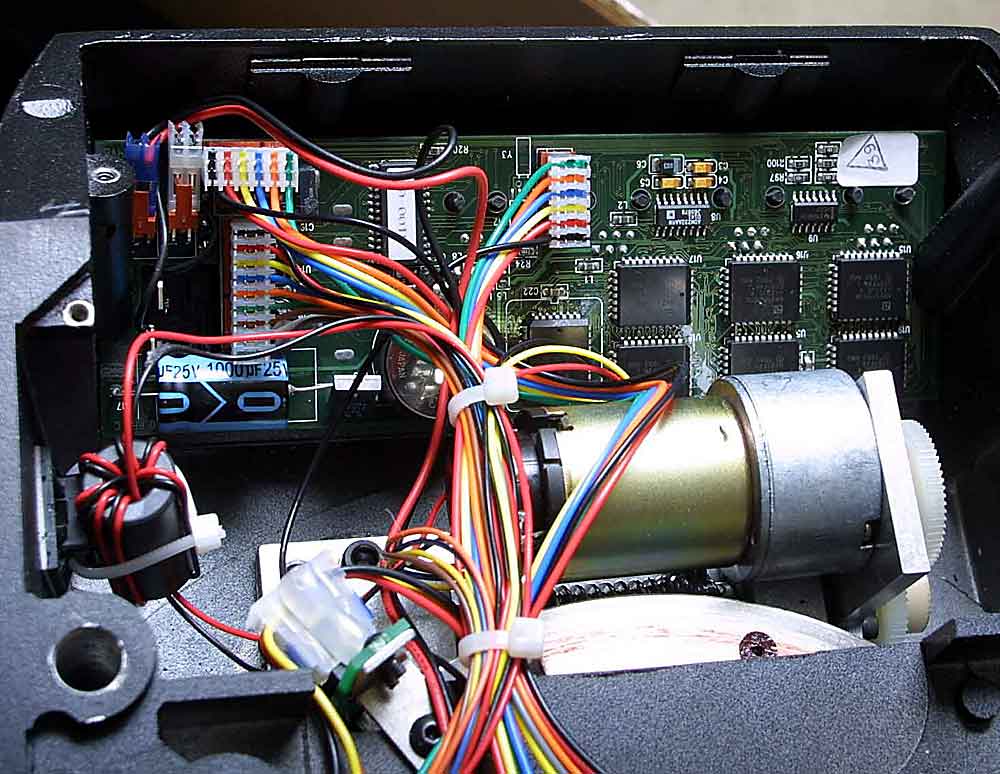

Back of Power Panel



Part 2-- Other pictures available at: <http://rseymour.home.wolfenet.com/LX200guts.html> and

Part 3-- <http://cacella.astrodatabase.net/lx200gps.htm> and

Part 4-- <http://www.meadelx200gps.com/tips.html> photo links in right column, near bottom.
