Discussion of Declination Drive Design

The event that brought on this article is posted at the end.   (For dec run away experience press here.)

The declination drive for the LX 200 is discussed in some detail herewith.  Since the RA drive is essentially identical, the commentary here should also serve to describe its basic operation.

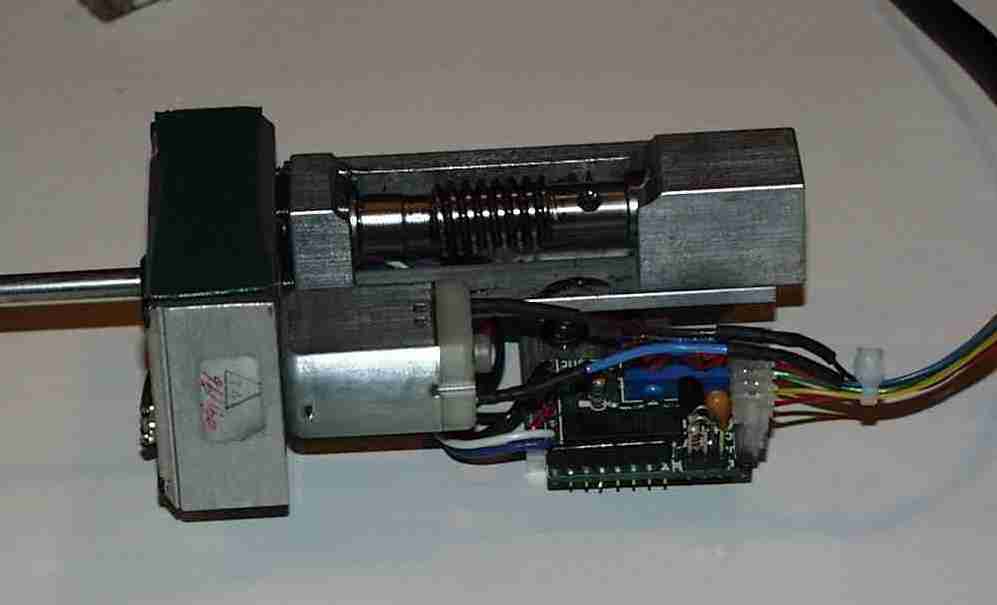

The drive is shown on the left from the front top view as it is delivered from Meade.  This particular drive is a spare that I purchased from Meade for $150.00.  It is held in my personal stock of parts to replace a drive that might go out of service for some reason on one of the two LX200 telescopes that I am responsible for keeping in good repair.   On the right, the drive is shown from the bottom.  The mechanical operation of this unit has been discussed at length elsewhere in these pages.  Our concern in this discussion is with the electrical and electronic parts of the drive.

The tiny motor that drives the telescope through a gear train and worm is shown clearly.  The motor shaft rotation is reduced by the gear train in the housing on the left by 60 times where it is coupled to the worm.  The worm in turn drives the worm wheel (the large spur gear in the declination drive, not shown) which has 180 teeth.  The worm turns only when a declination correction is required.  The RA drive is identical except that the hole seen in the worm shaft in the photograph on the left has a magnet in it which operates a switch that establishes the starting point for PEC training.  It, of course, turns continually at one (1) turn every eight (8) minutes to move the RA position at sidereal rate.

The small circuit board has a dual Schmitt trigger circuit chip which converts the signals from two photo detectors to a bi-phase signal that is sent to the computer board.  The photocells detect light from a pair of small lights through the encoder mask and encoder wheel encased in the gear box housing.



Close-up of the photocells and light arrangement are shown in the following two photographs.  On the left are shown the two photo detectors which are stuck into holes in the gear box housing and cemented in place.  The leads on the photocells are bent very sharply and connected to rather heavy wires, then clamped in a plastic clamp stuck to the housing.  This is a possible trouble spot.  The leads coming out of the photocells are very brittle and are bent too sharply, in my opinion.  They are cracked slightly at the bend in this example.  The leads going from the photocells to the circuit board are rather stiff and unfortunately the plastic clamp is not positioned correctly nor is it closed tightly enough to hold the wires and thus relieve the stress on the photocell leads as intended.  This area should be inspected carefully if there is a declination drive runaway problem.

The photograph on the right shows the photocells, on the outside, and the lights on the inside of the housing.  The encoder mask and encoder wheel lie between the two.  When the light path is interrupted, the encoder sends signals via the Schmitt triggers to the computer where they are counted to establish differential position information for the computer.  The wires to the lamps are also quite heavy and put excessive stress on the tiny light leads in my opinion.

The circuit board contains, in addition to the integrated circuit chip,  two potentiometers which are used to adjust the level at which the trigger circuits operate.  These can only be adjusted with use of an oscilloscope which is used to observe the signal while the motor is turning the encoder wheel.  A set of test terminals is provided for this adjustment.



In one case of declination drive runaway, the cause was breaking of one of the leads to one of the photocells.  I tend to believe that many declination drive runaways, that are not do to bad connections, are due to failures in the declination drive circuits in this assembly.  Unfortunately, since the declination drive motor, encoder and all the rest of the system including the computer are part of a closed loop control system, it is difficult to find the problem without appropriate test jigs and procedures.
